Single Shaft Shredder Introduction:

Single shaft shredder from United Tech Machinery is available to recycle wide range of material. It is an ideal machine for plastic, paper, wood, fiber, rubber, organic waste a wide variety of non-metallic materials. As per our customer’s requirements, such as the input size of materials. Capacity and the final output size etc. We could work out a suitable proposal for our clients. After being shredder by the machine, the output material could be used directly or go int to the next step of size reduction.

With the function of microcomputer control system, it is possible to control automatically start, stop. Automatic reverse sensors to protect the machine against over loading and jamming. The output capability typically range between 300kg/hr –5,000kg/hr+ depending on the different model and different materials.


Single Shaft Shredder Advantages:

1/Detachable rotor blade, easy disassemble and installation, and simple maintenance.

2/Automatic feeder, increase produce efficiency.

3/ Quick change screen for accurate particle size control.

4/ Shock absorbing gearbox reduces stress on drive components.

5/Integrated rotor, assured the cutter clearance between the rotor blade and the counter blade.

6/Enclosed bearing protection design, waterproof and dustproof, extend the bearing work life.

7/PLC control system, automatic reverse sensor to protect the machine against over loading and jamming.

8/Provide the rotor cooler system against the low melting materials, prevent the materials burning while the temperature higher.

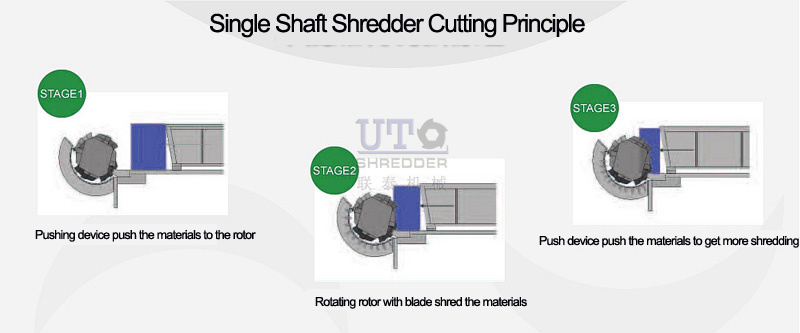

Cutting Principle about the Single Shaft Shredder:

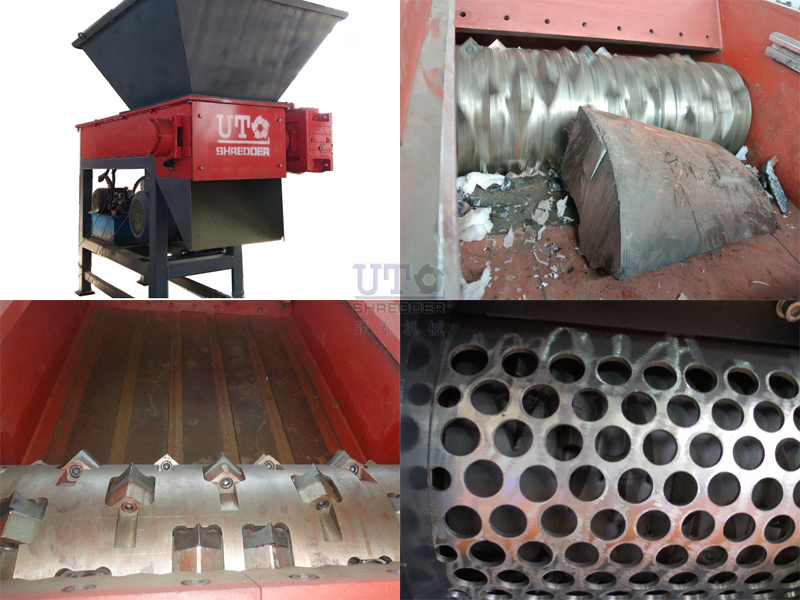

The cutting part of the single shaft shredder including the rotor, rotor blade, counter blade and the screen. The minimum mounting clearances between the rotor blade and counter blade is 0.1mm.

The motor drive the rotor by high speed rotating trough the speed reducer, therefore the rotor blade cutting the counter blade. After one cutting, the materials will be discharged if its size smaller the screen mesh size. Or the material will be double or more cutting, until the size is smaller than the screen holes.

Single Shaft Shredder Applications:

Plastic: Film; Jumbo Bag; PET Bottle; Plastic Barriers; Plastic Pipe; Plastic Boards

Hard Plastic: Plastic Lump (Purgings); Fiber, High Strength Engineering Plastics ( ABS, PC, PPS, etc.)

Wood: Timber; Tree Root; Wood Pallets; Wood Package, etc.

Industrial Solid Waste: Cable; Light Metal, like Aluminum Can, Aluminum Scrap, etc. White Goods, like TV Shell, Washing Machine Shell, Refrigerator Body Shell, Computer Shell, Circuit Board, etc. Solid Waste, like Household Garbage, Medicinal Waste, Industrial Waste

Others: Rubber, Textile, Fiber & Glass Products, etc

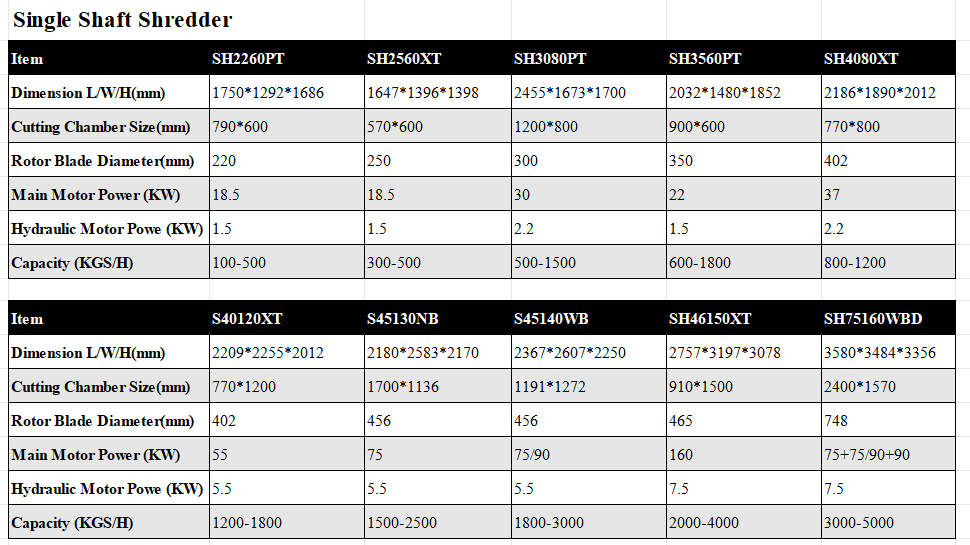

Item

Model

 dimension L/W/H

(mm)

Cutting Chamber Size

(mm)

RAM

(mm)

 Rotor Blade Diameter

(mm)

Net Weight

kgs

Output Capacity Ref.
(kgs/h)

Single Shaft Shredder

S2260

1780*1290*1690

790*600

600

220

1400

100-500

S3060

2455*1478*1700

1200*600

600

300

2550

300-800

S3080

2455*1678*1700

1200*800

800

300

2950

500-1500

S4080

2825*1747*1875

1400*800

800

390

3500

800-1200

S40100

2825*2004*1875

1400*1000

1000

390

4000

1000-1500

S40120

2825*2564*1875

1400*1200

1200

390

5000

1200-1800

S40150

2825*2964*1935

1400*1500

1500

390

6200

1400-2200

S48150

3255*4415*2720

1650*1500

1500

480

8000

1500-3000

S48200

3255*4415*2720

1650*2000

2000

480

11000

1600-3200

S48250

3255*4615*2720

1650*2500

2500

480

12500

1800-3500

S66150

4100*3450*3000

1550*1500

1500

660

12100

2000-4000

S66200

4100*3950*3000

1550*2000

2000

660

12500

2200-4200

S66250

4100*4450*3000

1550*2500

2500

660

14200

2500-4500

S66300

4100*5500*3000

1550*3000

3000

660

15500

2800-4800

S66400

4100*6800*3000

1550*4000

4000

660

17500

3000-5000


Note:

1. The voltage about the power supply can be selected by the customer’s specific requirements.

2. The shredder capacity can be influenced by the material compostion and output size.

The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.


Welcome to contact with us to get more details product information. We are glad to introduce you the most suitable machie, design the most resonable proposal as your production requirements. Our task is to support our customers who are in the solid waste & refuse management industries to get a higher production efficient, impove their product quality and value so that they can get a greatest progress in the keen competition.
