Magnetic Separator Introduction:

The magnetic separator from Zibo United Tech Machinery Co., Ltd. which has the characteristics of high magnetic field intensity and great suction.

It is not easy to demagnetize, the product uses high performance NDFEB magnetic source, and the demagnetization rate in eight years does not exceed 5%.

The magnet drum has automatic rectifying function, so it's fully sealed bearing base, good sealing. It can adapt to all kinds of harsh environment.

Automatic iron unloading, low noise, reliable operation, simple maintenance, long-term trouble-free continuous operation can be guaranteed.

The control part is connected with the belt conveyor to realize manual control and centralized control

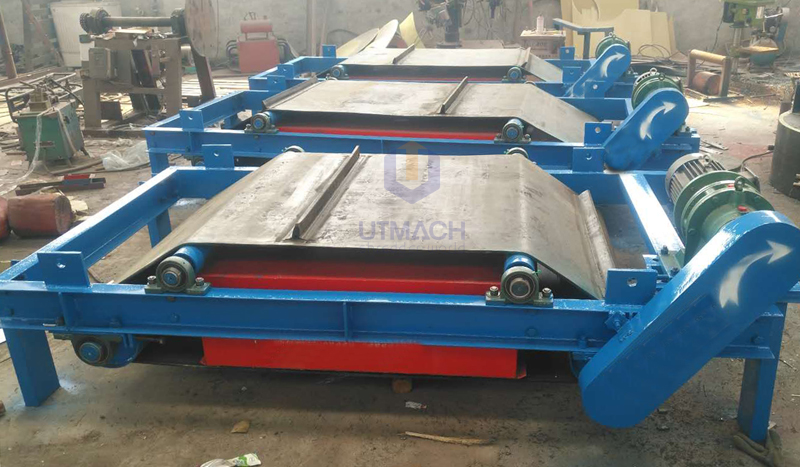

The magnetic separator is made of Permanent magnetic plate, 8mm Belt , Motor, Iron frame.

The permanent magnetic plate is belong to the magnetic system which can absorb the iron from the raw material. The 8mm belt and Motor are belong to the iron-cleaning system which will clean the iron automatically.

Magnetic Separator Advantages:

a. It is of simple structure, convenient to maintain.

b. can be customized its wideness, length, thickness, etc.

c. After test each separator which can be working 24 hours safety and stability, then we arrange the shipment.

d. Magnetic Separator provide deep reaching magnetic circuit design to penetrate heavy product burdens.

e. Strong magnetic field intensity, high gradient and strong attractive force.

f. Non-excitation and self-cleaning will bring us energy saving and convenience in operation.

g. working of suspended magnetic separator in harsh environment.

h. Safe specification

i. Customized color.

3. Magnetic Separator Applications:

Widely used in waste recycling, old furniture and old home appliances recycling, mining, garbage power plant and so on.

Note:

1. The voltage about the Product specification can be selected by the customer’s specific requirements.

2. The separator capacity can be influenced by the material composition .

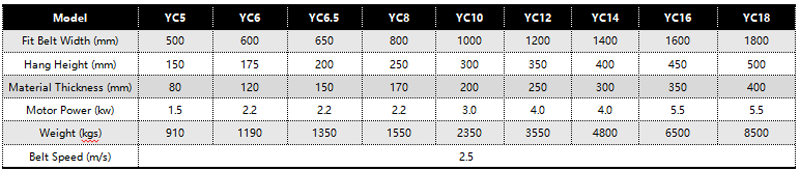

The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
